Protecting the Property with a Bespoke Composite Swing Gate
The homeowners at this private residential home in Camberley had become increasingly concerned about the security of their outdoor space after experiencing unwanted visitors accessing their back garden. While the property’s layout meant that the lower driveway provided a semi-private entrance to the garden, it was not adequately secured by the existing gate. The clients wanted a solution that would enhance their sense of safety without creating a harsh or overly fortified appearance.
The result was the installation of a single composite swing gate, complete with underground automation, a custom-built handrail, and integrated safety measures. Designed to blend naturally with the surrounding environment, the system delivers both security and convenience without compromising the inviting feel of the home.
Client Requirements
The client’s primary requirement was simple: secure the bottom of the driveway to prevent unauthorised access into the back garden while maintaining a visually appealing and functional entrance. They did not want the gate to appear industrial or overly fortified. A delicate balance between style and protection was essential.
Fraser Gates achieved this through:
- The use of a single composite swing gate that looked like a continuation of the driveway boundary
- A heavy duty post to support the gate leaf
- Clean, modern materials that do not overwhelm the space
- Underground automation (installed to current regulations) to ensure full use of the driveway width
- Discreet safety and access-control features, including a handrail to fit a photocell
- A custom gate design reflecting the client’s taste
The solution delivered both peace of mind and a welcoming appearance.
Project Scope
The project centred on creating a security barrier that would prevent unauthorised access to the garden while still looking like a natural part of the home’s layout. Rather than opting for a more industrial solution, the client requested something that appeared welcoming and aesthetically cohesive.
Addressing Security Concerns

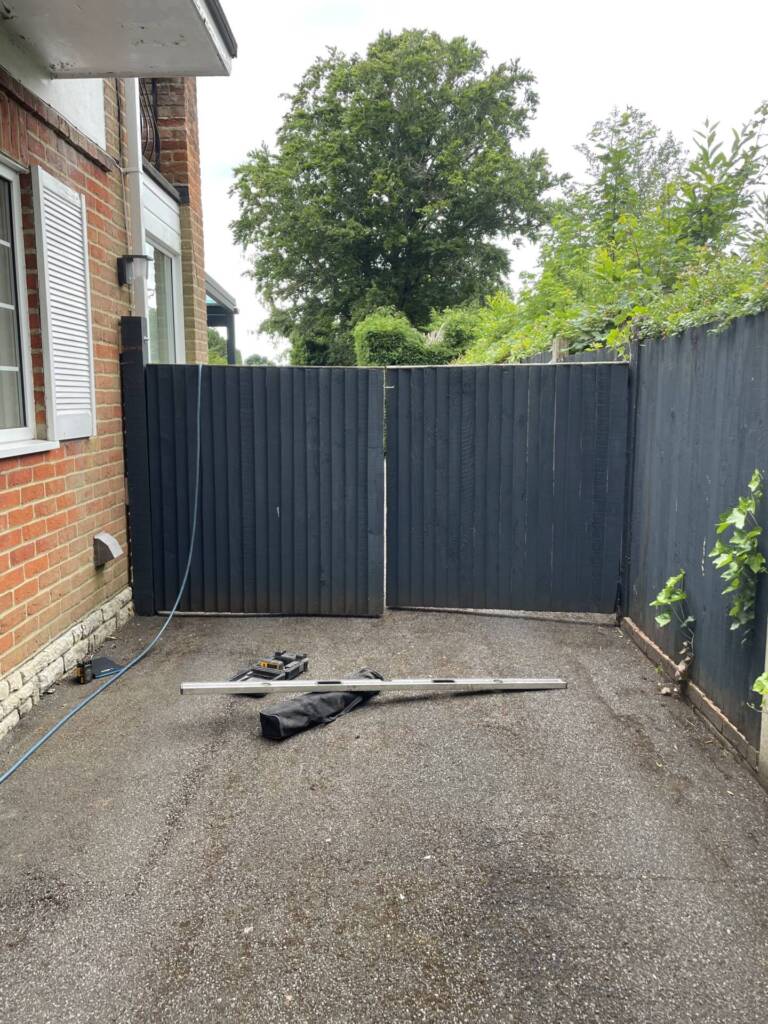

The homeowners had started feeling uncomfortable and unsafe due to individuals wandering into their garden from the driveway. Although the driveway itself appeared private, the lack of a defined boundary meant people could walk straight into the rear space. The new installation needed to prevent this while remaining visually in keeping with the property.
Design Recommendation
Fraser Gates recommended a single composite swing gate with decorative railheads at the top. This design gives the appearance of a driveway boundary rather than a rigid security barrier, making it ideal for clients who want effective protection without introducing a harsh or imposing presence. Composite infill was chosen because it offers excellent durability, minimal maintenance, and privacy, while still allowing a decorative finish. It also works well with a wide range of architectural styles.
The gate was paired with underground automation to maximise the available opening width, which was critical given the need to accommodate vehicles passing through the lower driveway section.
Maximising Vehicle Access
Due to the limited space in the driveway and the tight clearance between boundary structures, the gate had to swing fully and cleanly without disrupting vehicle movement. Underground automation was the most suitable approach, as above-ground motors would have reduced the available width and created additional visual clutter.
Challenges and Problem Solving
No installation of this nature is without challenges, particularly when balancing security, practicality and aesthetics in a constrained space.
Space Constraints
Space was a central consideration from the outset. The driveway needed to remain fully functional for vehicles, yet the new gate had to sit precisely within the available width. A swing gate must have adequate clearance both during opening and while fully extended. Any misalignment of posts or gate geometry would risk scraping, resistance or interference with passing cars.
The installation required:

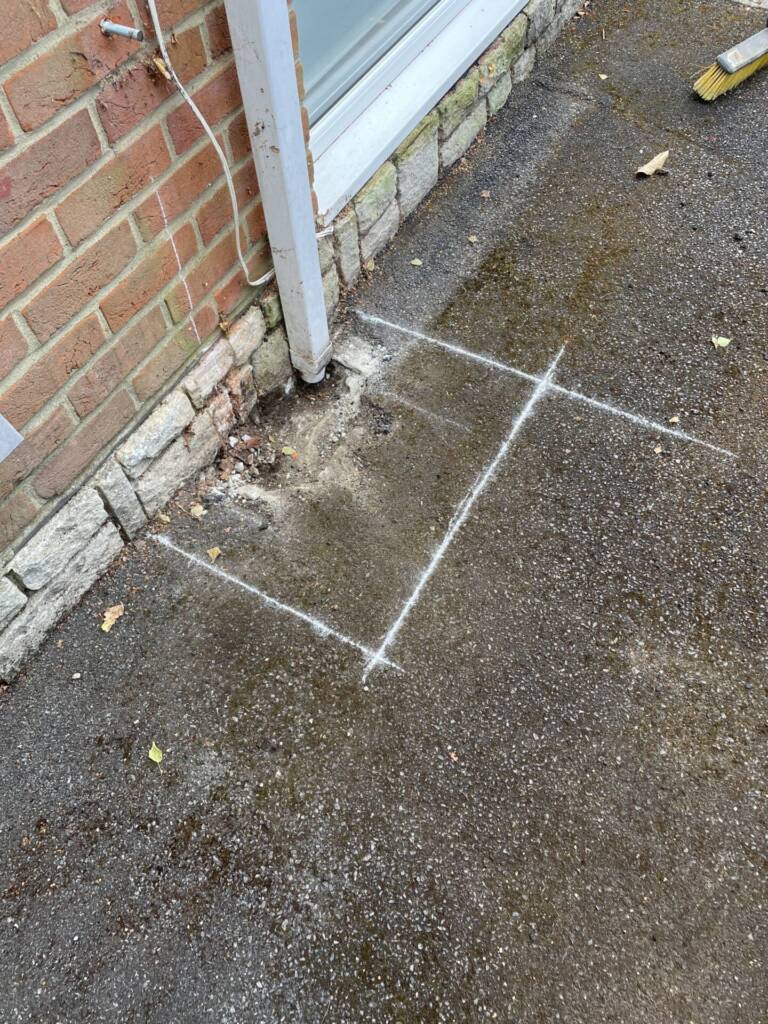

- Careful measurement of the driveway width and curvature

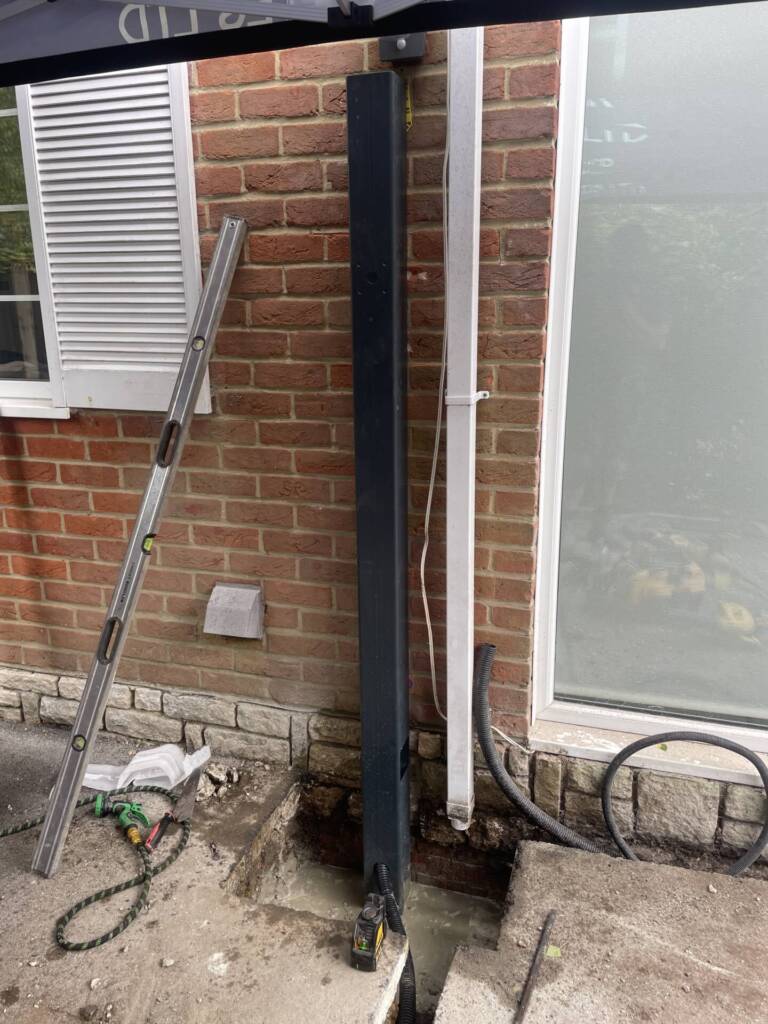

- Accurate placement and alignment of the heavy-duty post
- Precise fabrication of the gate frame to ensure the composite boards sat perfectly square
- Fine adjustment of the underground motor geometry
The end result was a gate that operated smoothly while leaving enough space for even larger cars to pass through without hesitation.
Drainage Solutions
Drainage is often overlooked in gate installations but plays a significant role in long-term performance. Poor drainage can cause underground motors to sit in standing water, affect the stability of gate posts and create maintenance issues. At this property, natural water run-off from the driveway pooled near the gate area.
To counter this, we installed a drainage line directing water into the adjacent flower bed, where it could naturally disperse without undermining the installation. This ensured the underground mechanisms of the composite swing gate remained dry and functional, preventing long-term reliability issues.
Custom and Bespoke Elements
Every Fraser Gates gate installation includes bespoke elements tailored to the homeowner’s needs, and this single composite swing gate in Camberley was no exception.
Custom Handrail With Integrated Photocell
A bespoke handrail was fabricated to accommodate a safety photocell. While the client was initially unsure about the inclusion of a handrail—concerned it might detract from the property’s appearance—they quickly came to appreciate its functionality. Positioned alongside a small set of steps, the handrail provided:
- A practical support feature when walking up or down
- An ideal mounting point for the photocell
- A neat and discreet method of integrating essential safety equipment
This ensured regulatory compliance without compromising the overall aesthetics.

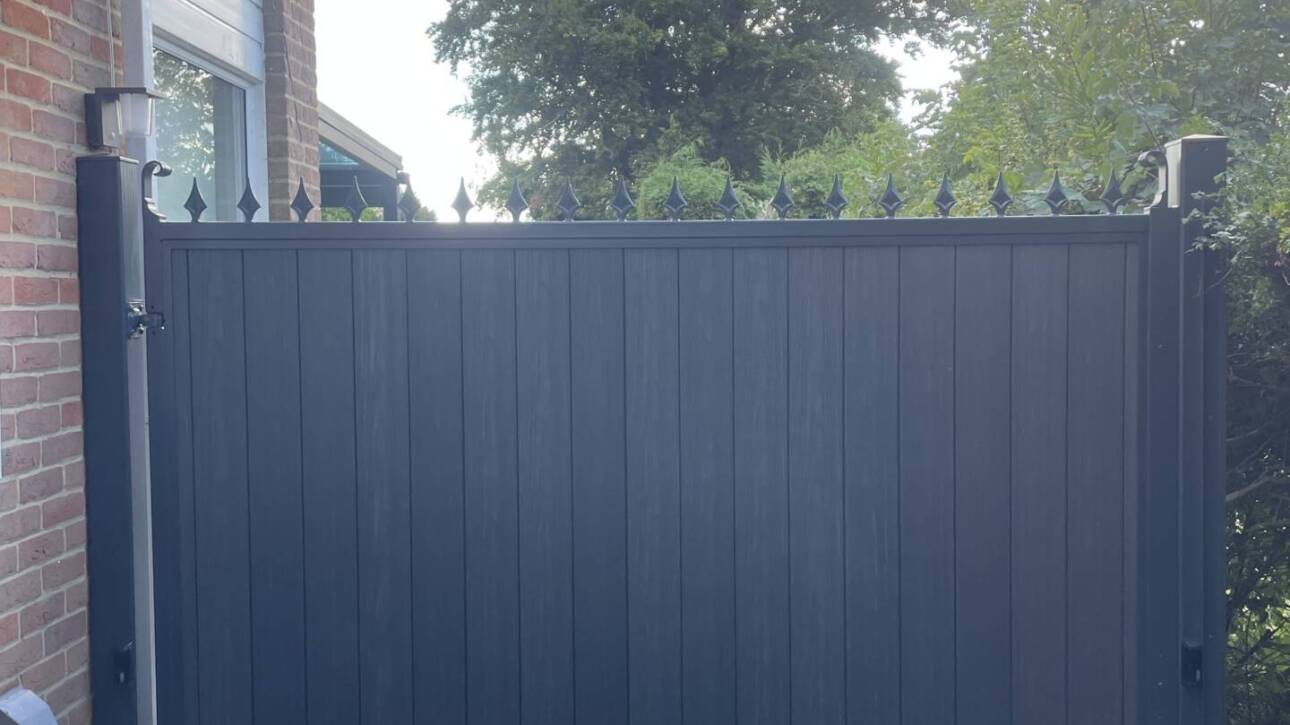

Bespoke Gate Frame Design
Working closely with the client, Fraser Gates designed a custom gate frame that would house the composite boards securely while maintaining clean, modern lines. The design process involved:
- Reviewing different composite infill patterns
- Selecting suitable railhead designs for the top of the gate
- Creating a visual balance between privacy and openness
- Ensuring the gate complemented existing boundary structures
The final design succeeded in blending seamlessly with the property’s appearance while providing the required level of security and privacy.
Results and Achievements

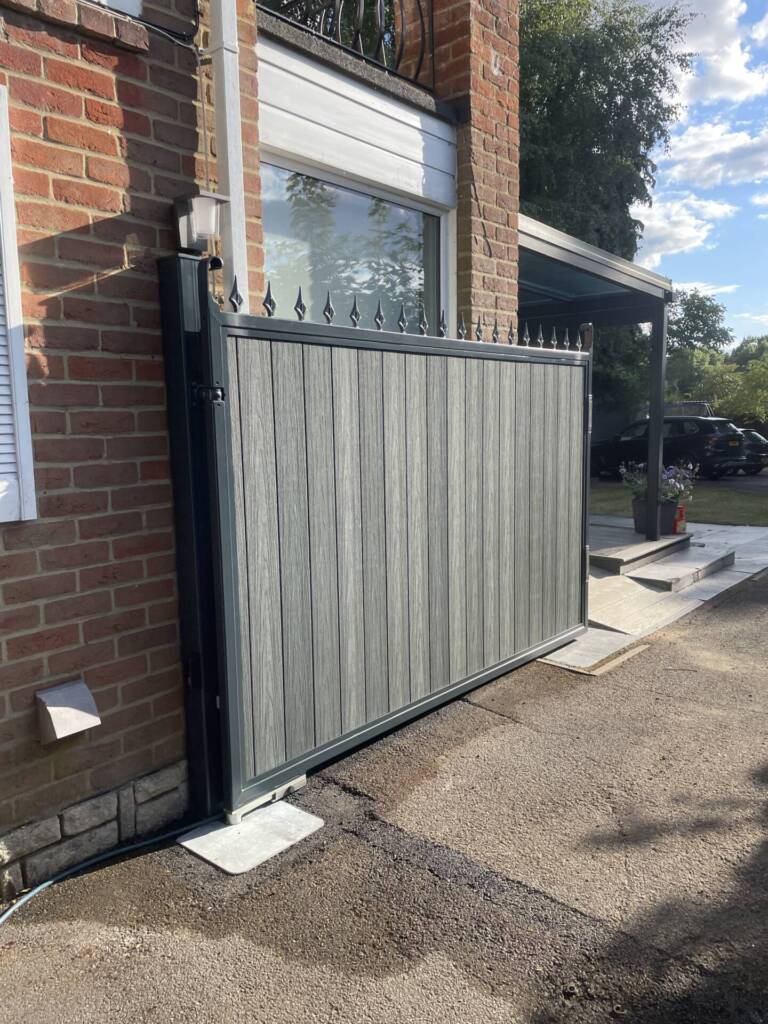

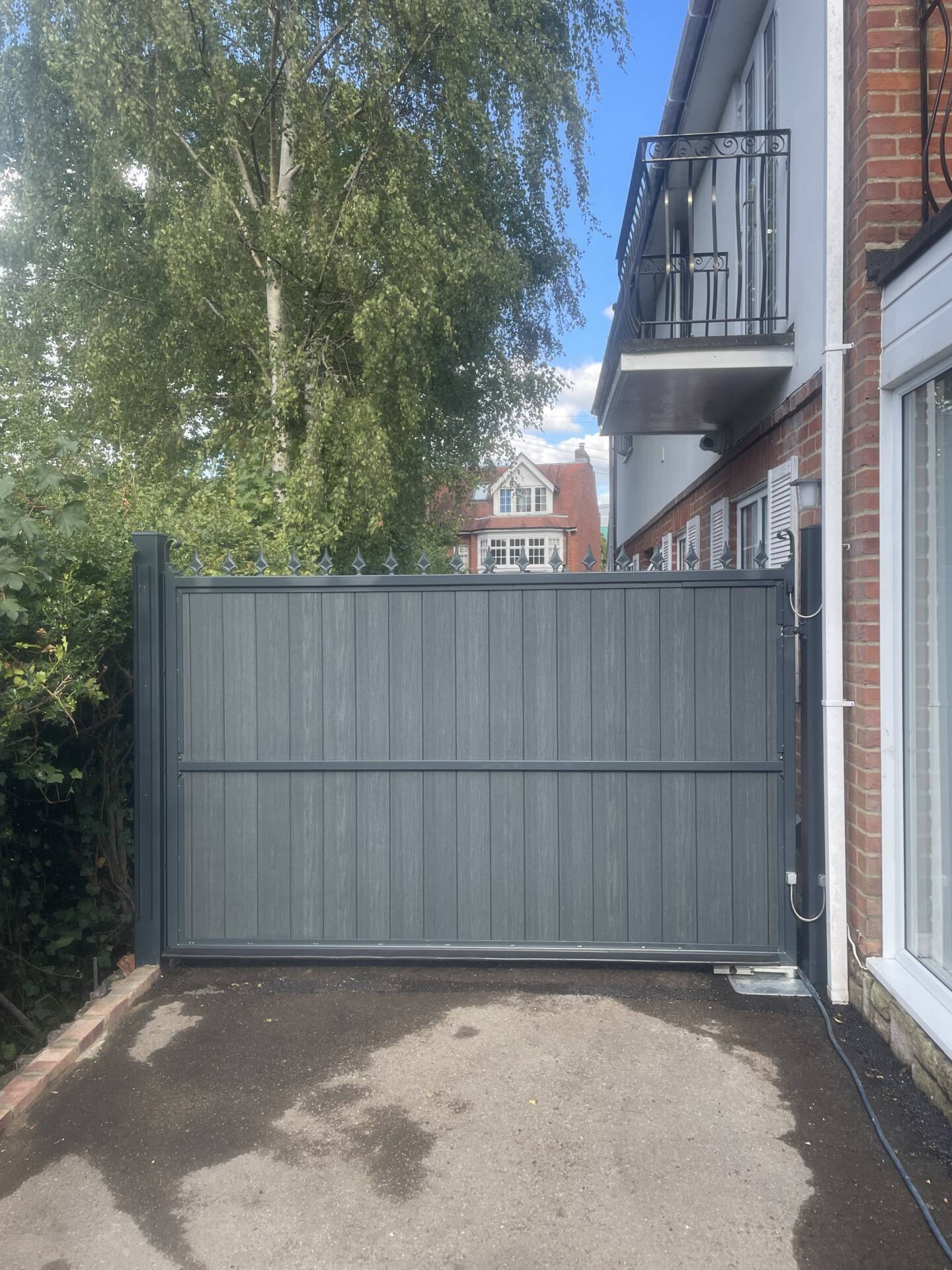

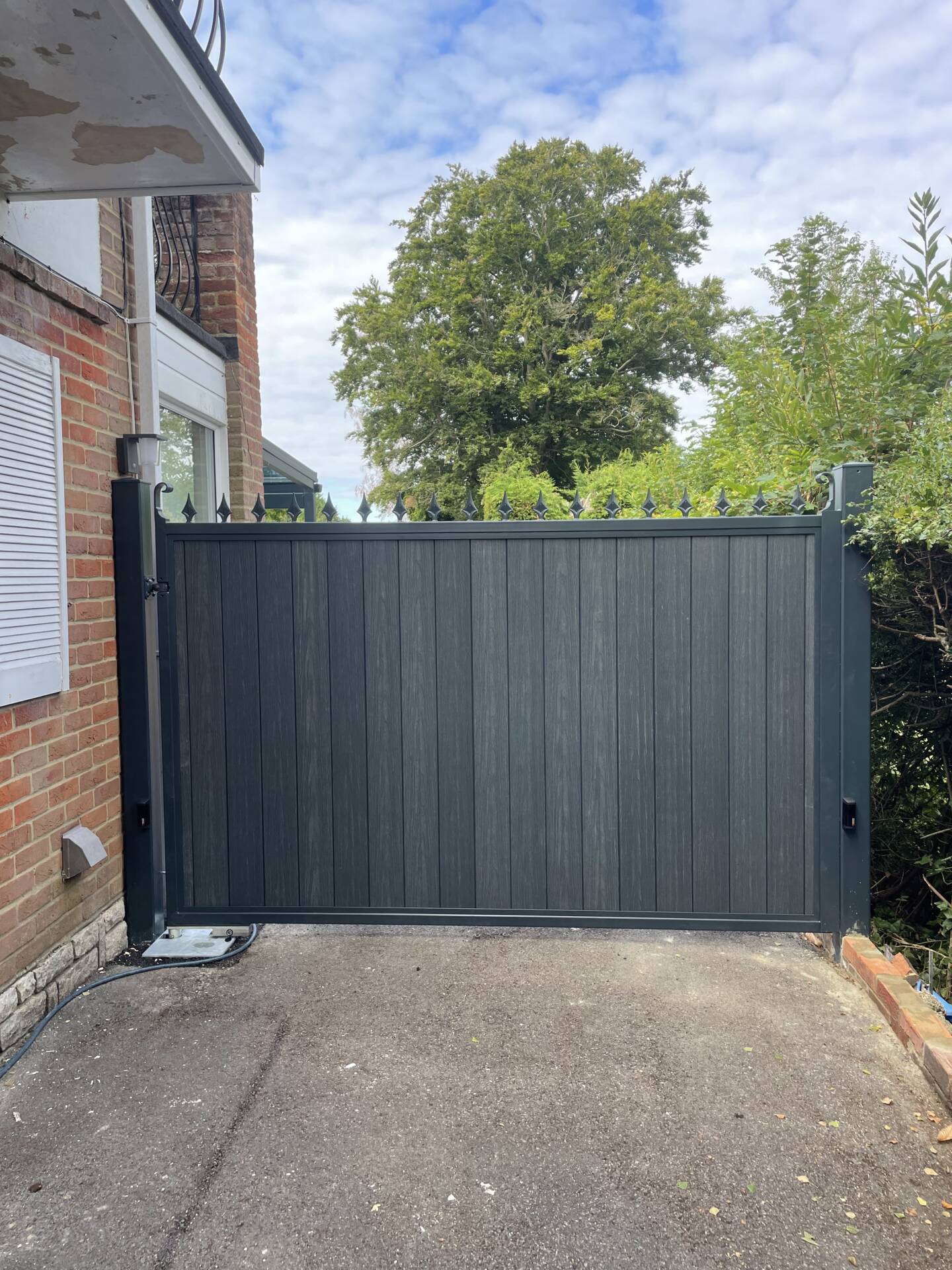

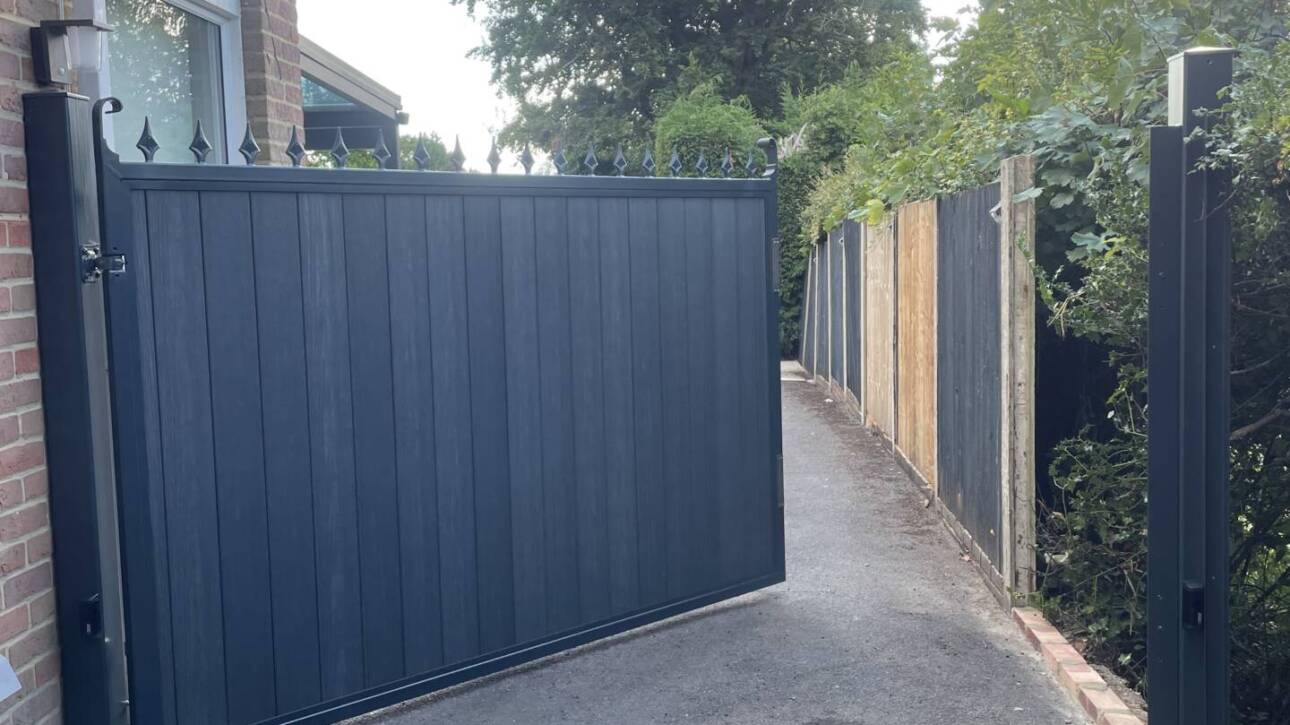

The final installation met the client’s needs in every respect. The composite swing gate operated smoothly, thanks to precision alignment and quality automation. The tolerances were tight yet perfectly balanced, ensuring the gate moved freely without excessive spacing gaps that would detract from its appearance.
The newly established boundary provided immediate peace of mind. The homeowners could enjoy their garden without worrying about uninvited visitors wandering in from the driveway. The gate’s appearance was refined, integrating naturally with the property and avoiding any sense of harsh security measures.
Additionally, the installation of drainage, the bespoke handrail and the custom-designed frame all contributed to a robust, long-lasting solution. The clients were especially pleased that Fraser Gates took time to advise them on options and recommend enhancements rather than simply carrying out a basic installation.
Timeframe
The total timeline for this composite swing gate project was approximately six weeks, including the design, fabrication, and installation phases. Groundworks and automation setup were completed efficiently, with all components installed and commissioned seamlessly.
Client Feedback
Once the installation of the composite swing gate was finished, the client had this to say about Fraser Gates:
“Rory was great from start to finish. He kept us informed of each step, was keen to do the best possible job for us, and we ended up with a fantastic gate.”
